Samsung VRX DVM Tech
Updated design to keep up with new innovations.
"A new concept in air conditioning with the Samsung DVM S2.
The air conditioner is energy efficient and provides you with unparalleled comfort, even in harsh climate conditions. Its smart features make installation and maintenance easy and even less expensive."
Permanent protection and optimal performance

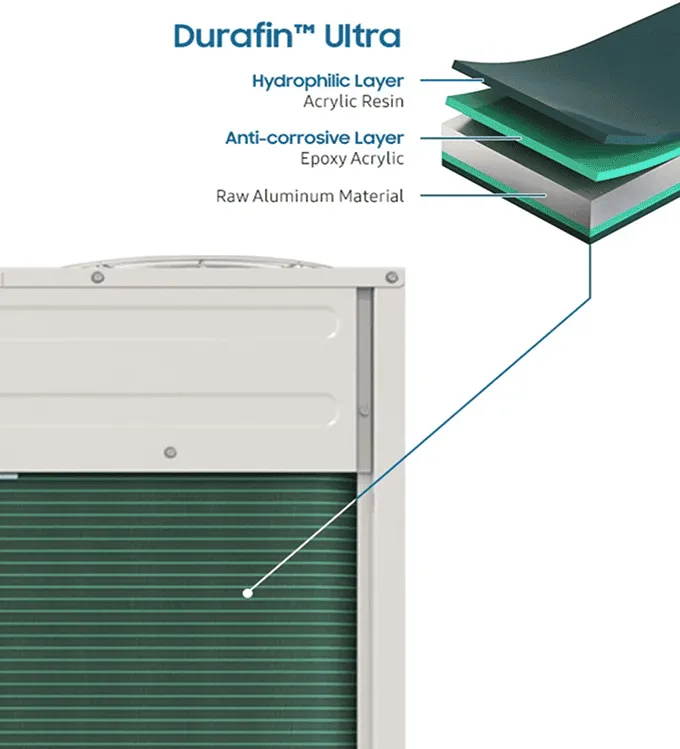

Durafin™ Ultra
Protect your heat exchanger from damaging corrosion. Durafin™ Ultra features a corrosion-resistant coating and a water-based layer that protects your heat exchanger from rust. Its superior corrosion resistance has been proven in the Salt Spray Test (SST)*.
- * Based on testing by a third-party laboratory in accordance with ASTM B117, an official test method. For more details, please contact Samsung technical specialists.
- ** Based on testing in an external laboratory where actual refrigerant pressure was applied for 1 minute after a salt spray test (SST) over 2,280 hours.
Flexible design at lower cost

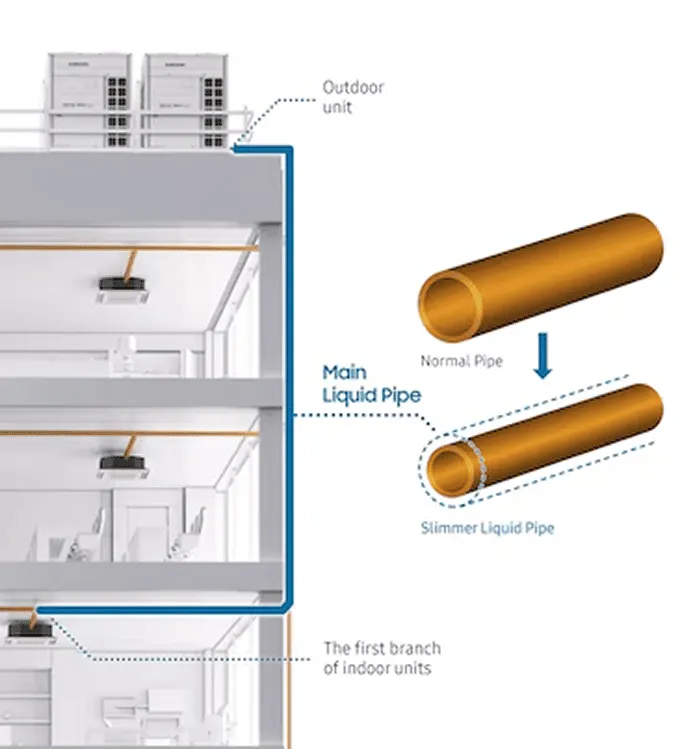

Thinner tube for liquid
Save installation costs with an efficient piping system that uses 28%* less refrigerant thanks to a thinner fluid pipe**. This reduces installation and maintenance costs, improves design flexibility, and is environmentally friendly, reducing CO2 emissions.
- * When using a thinner than normal pipe to extend the main liquid pipe to the same capacity air conditioning system, the amount of refrigerant to be charged can be reduced by an average of 28%.
- ** Optional. A thinner than usual pipe can be used to extend the main liquid pipe between the outdoor unit and the first branch of the indoor units. The diameter of the thinner pipe will vary depending on the diameter of the pipe normally used. However, this is not available for the 22.4kW and 28kW models. It may also not be available under certain installation conditions, and is not compatible with the AI functions of the outdoor units. Please contact Samsung technical specialists for availability and more detailed information.
Automatically improve efficiency

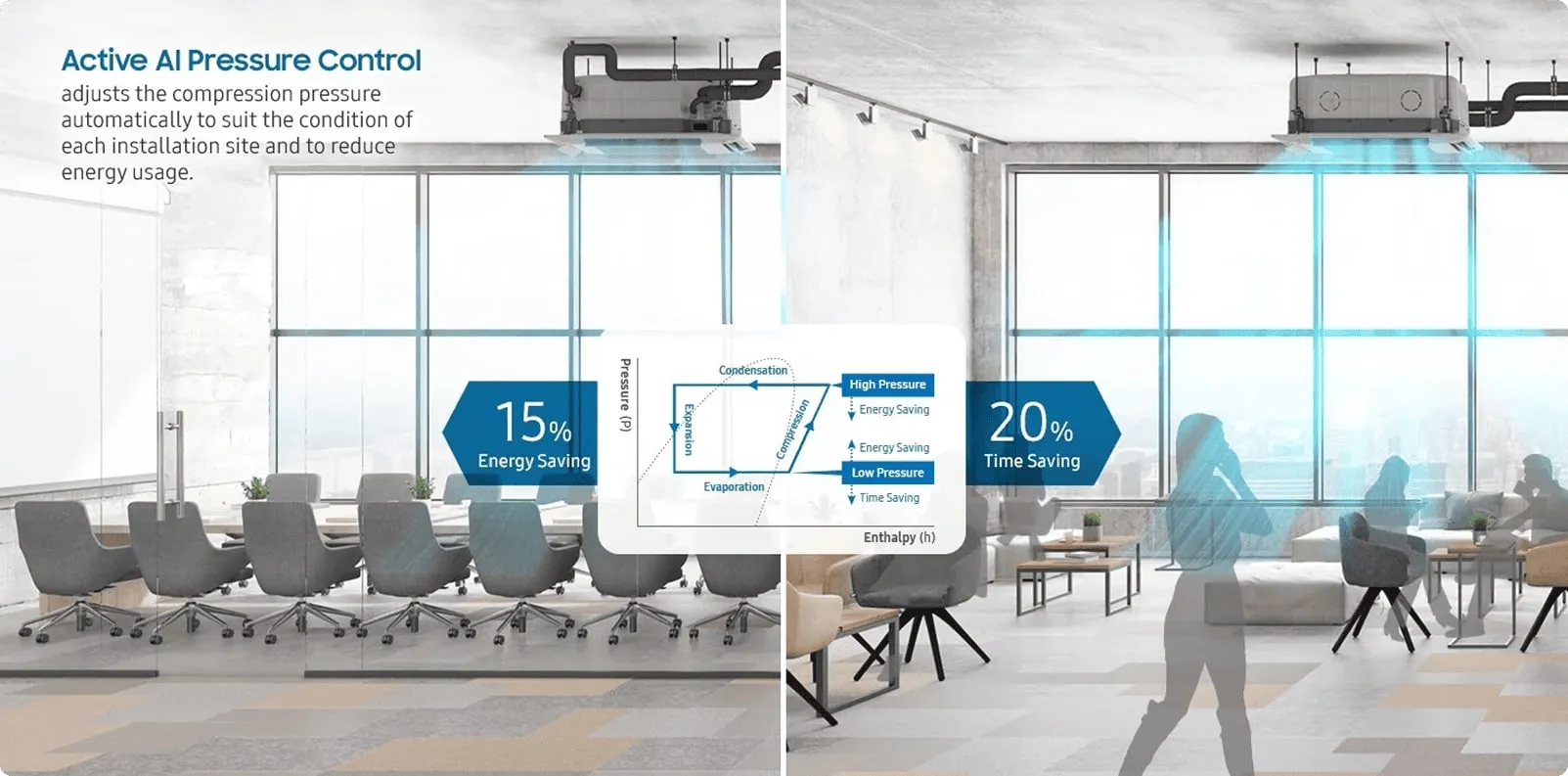

Automatically optimize cooling! AI Active Pressure Control* intelligently adjusts condensing pressure, reducing energy consumption by 15%**. AI Active Defrosting increases continuous heating time by 40%**. AI Active Refrigerant Analysis**** optimizes refrigerant level.
- *This is optional depending on installation conditions. For detailed information, please refer to the installation manual.
- **Based on internal testing of outdoor unit AM080AXVGGH/EU connected to indoor units AM083NN4DBH1 and AM145NN4DBH1 using 25 meters of piping and auto mode cooling operation for 4 hours, outdoor temperature of 30°C and set temperature of 22°C. Results may vary depending on actual installation and usage conditions, such as piping length, altitude and outdoor temperature.
- ***Based on internal testing. Heating time at -10°C over 6 hours: Samsung DVM S2 (AM240AXVAGH/EU) takes 180 minutes, versus 110 minutes for a conventional outdoor unit. Results may vary depending on environmental factors and individual usage.
Maximum energy efficiency
Energy efficiency

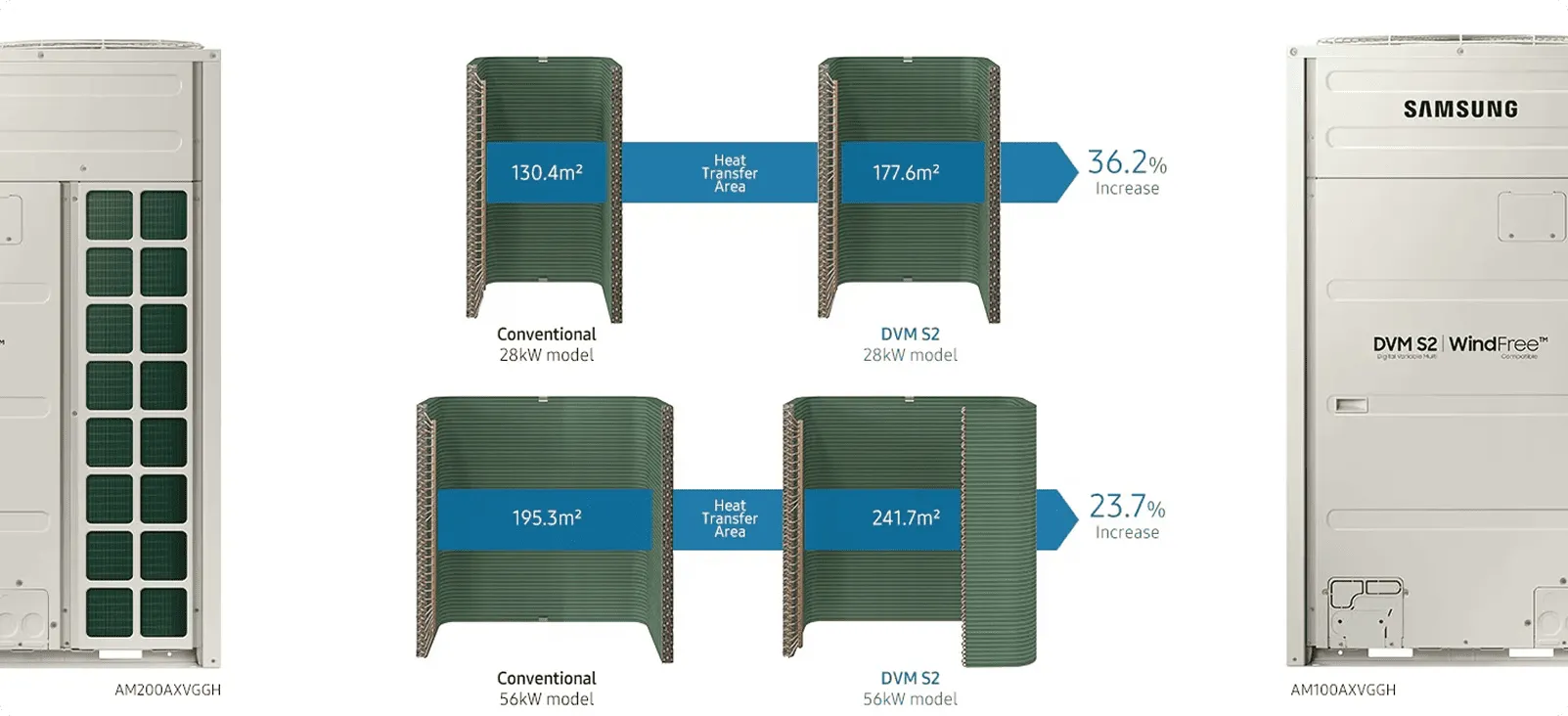

Reduce costs and increase energy efficiency by approximately 11%*. The heat exchanger has a 36.2%** larger surface area for faster heating. An optimized coolant path enhances heat transfer, and the multi-blade toothed fan consumes 32%*** less electricity. The new IGBT transistor reduces electricity loss by 20%****.
- *Based on testing according to the Eurovent test base at the end of December 2020. Testing was carried out on models with a capacity ranging from 22.4 to 56 kW of Samsung DVM S2 compared to the same capacities of another brand using tubular-type indoor units.
- **Based on Samsung measurements compared to 33.6kW DVM S2 models and a conventional outdoor unit.
- ***Based on internal testing using a 33.6kW DVM S2 model. The multi-blade toothed fan generates 195 cubic meters per minute at 725 watts, while the conventional fan generates 176 cubic meters per minute at 1,057 watts. Results may vary based on individual testing or usage conditions.
- ****Based on internal testing of DVM S2 33.6kW model compared to conventional outdoor unit, combined with 6 GD2 5.6kW indoor units. Results may vary based on individual testing or usage conditions.
A new era of consistent comfort

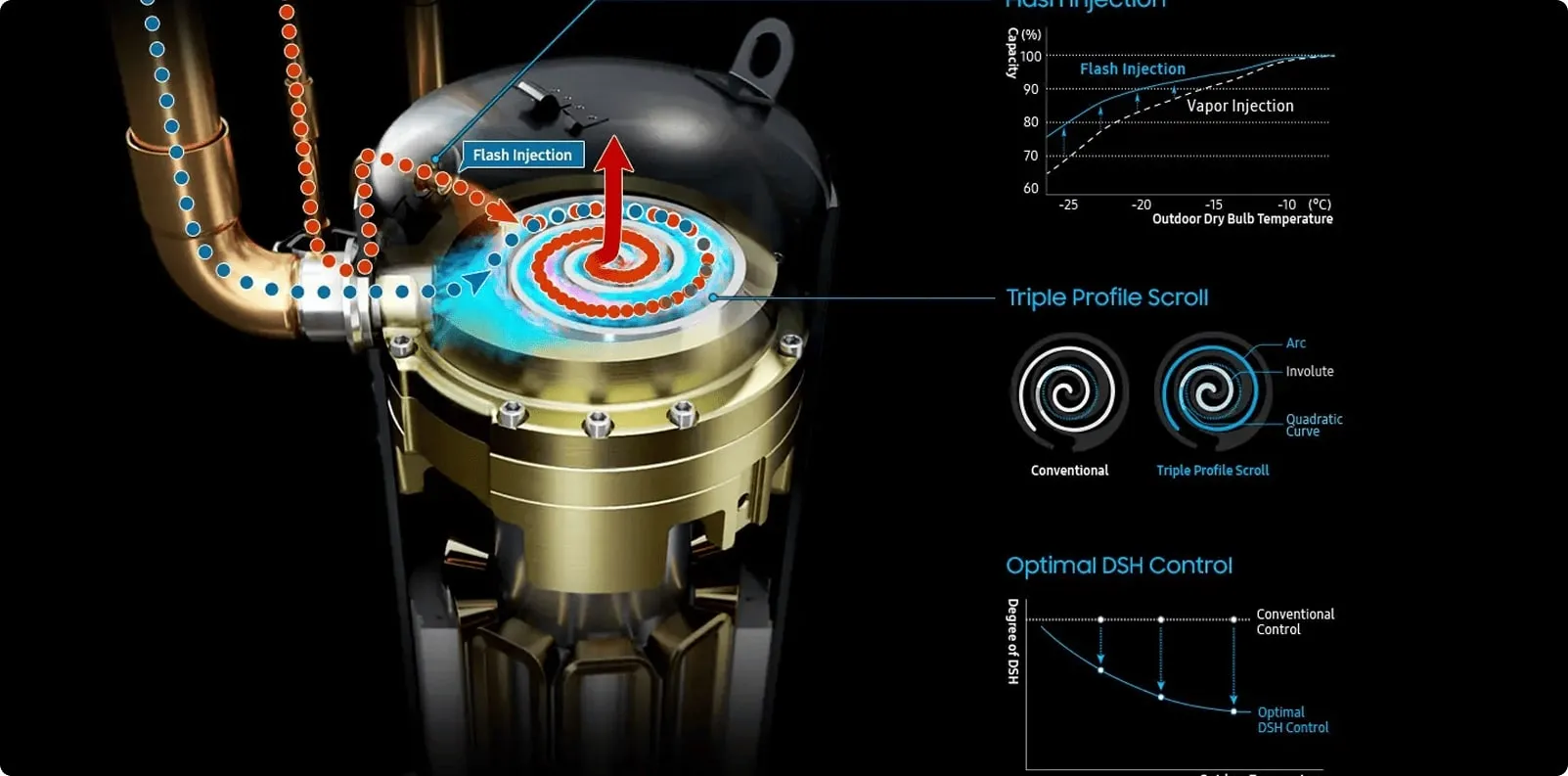

Advanced compressor based on refrigerant spray technology
Enjoy a new era of lasting comfort and efficiency. The advanced refrigerant spray compressor offers the world's largest capacity. It combines refrigerant spray technology, a reinforced Triple Profile Scroll and optimized Discharge Superheat (DSH) control.
- *Samsung distributes 14,400 cc/s of refrigerant (= 90 cc (displacement volume) × 160 rpm), Company A distributes 12,480 cc/s (= 96 cc × 130 rpm), Company B distributes 14,080 cc/s (= 88 cc × 160 rpm), and Company C distributes 12,320 cc/s (= 88 cc × 140 rpm).
